Complete semiconductor test environments

Precision starts with the right system.

Probe stations, analyzers, thermal systems, photonics automation and radiation testing—integrated around your devices, measurements and lab.

50–450 mm
device & wafer formats
Up to 110 GHz
RF / mmW configurations
USA + Europe
sales, integration & support
Micromanipulator VERSA double-sided probe station
01 Double-sided access
02 Measurement-ready integration

One partner from probe tip to data

Probe stationsAnalyzers & SMUsThermalPhotonicsRadiation TID

Featured systems

Equipment built around the measurement.

Real platforms from the Micron Probing portfolio, presented clearly so your team can compare the right starting points.

01VERSA

Manual systems

VERSA

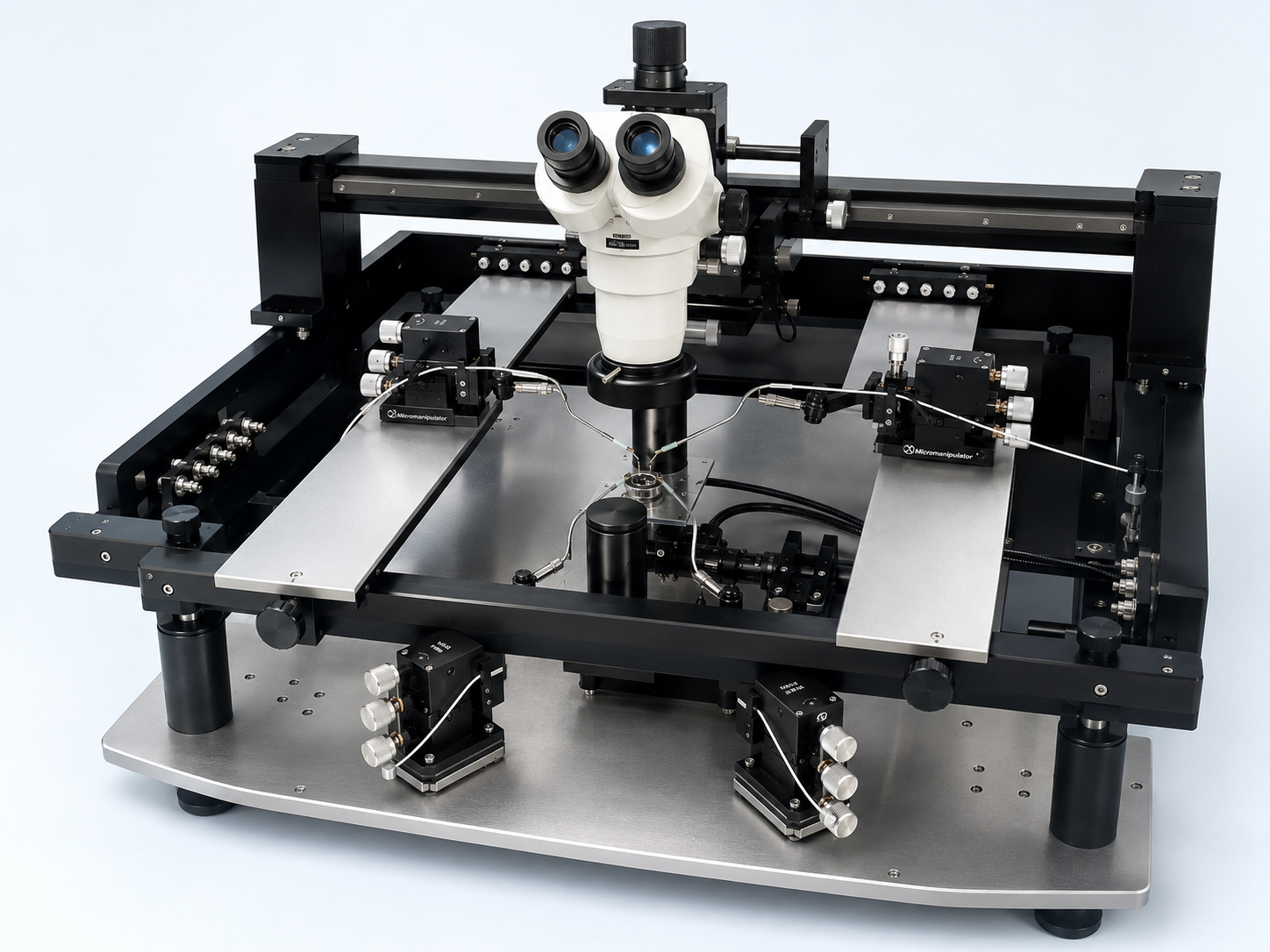

A modular double-sided probing platform for wafers, die, packages and boards—configured around the measurement, not the other way around.

  • 200–450 mm configurations
  • DC, IV/CV, RF & mmW
  • Thermal & dark-test ready
View system
02Auto-Probe 200 / 300

Automated systems

Auto-Probe 200 / 300

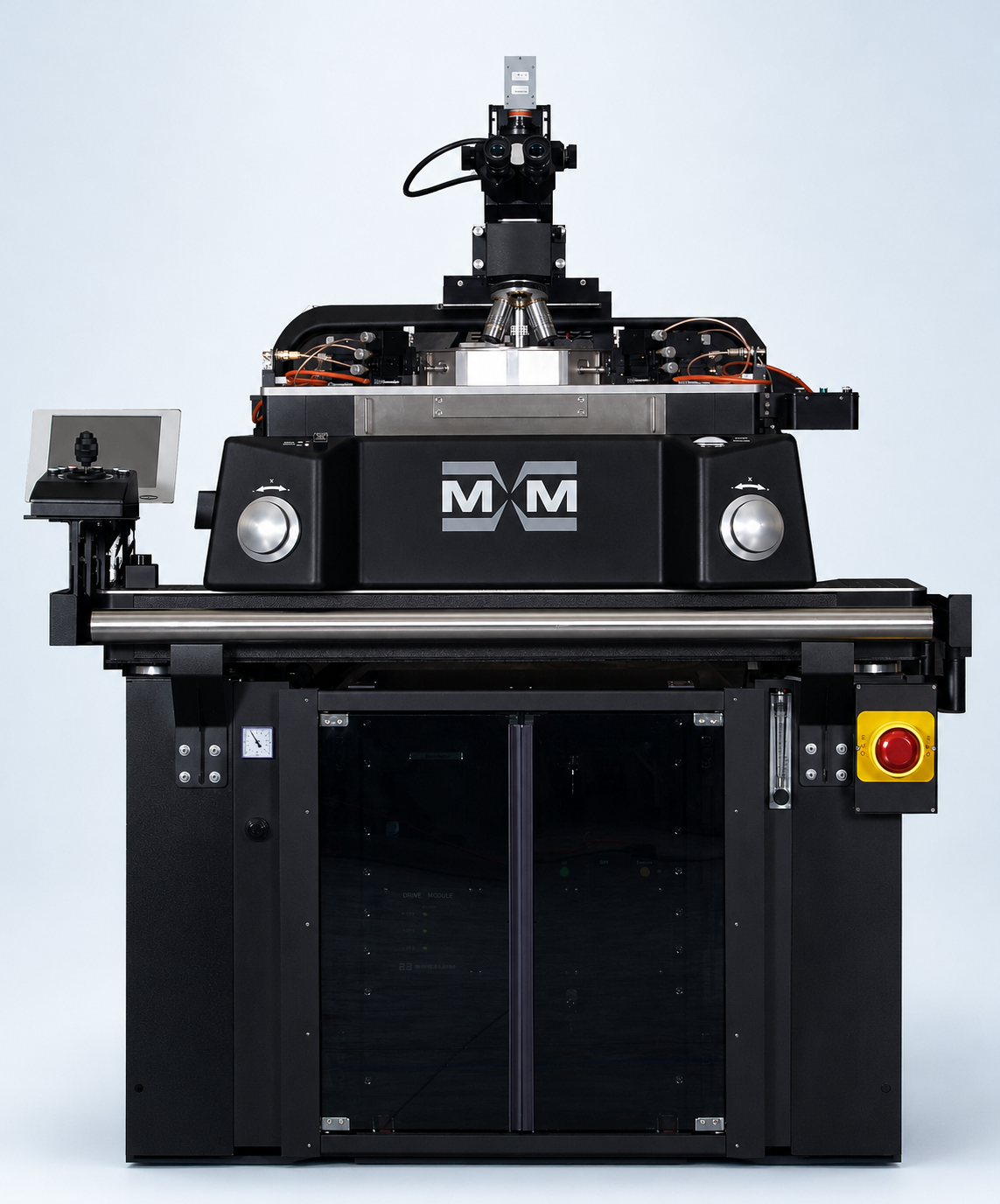

Precision motorized probing with pattern recognition, programmable motion and repeatable wafer-level measurement workflows.

  • 200 & 300 mm platforms
  • Automated alignment
  • High-power & thermal options
View system
03Cryogenic Probe Systems

Low-temperature research

Cryogenic Probe Systems

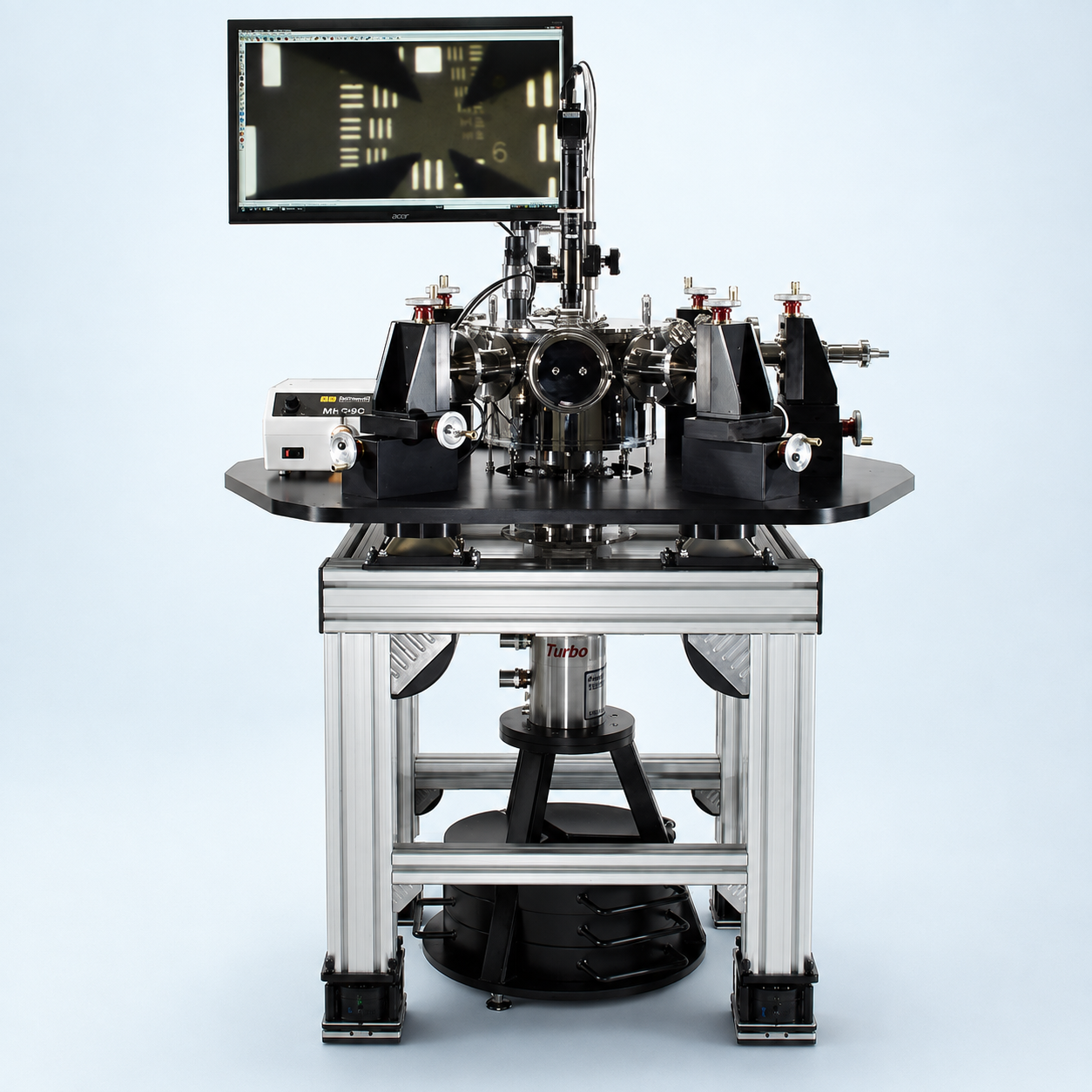

Integrated flow and closed-cycle environments for quantum, MEMS, nanoscale and electro-optical characterization.

  • Below 4 K to 800 K
  • Up to 6 probe arms
  • DC, RF & optical access
View system
04TIDeX Precision X-Ray

Radiation qualification

TIDeX Precision X-Ray

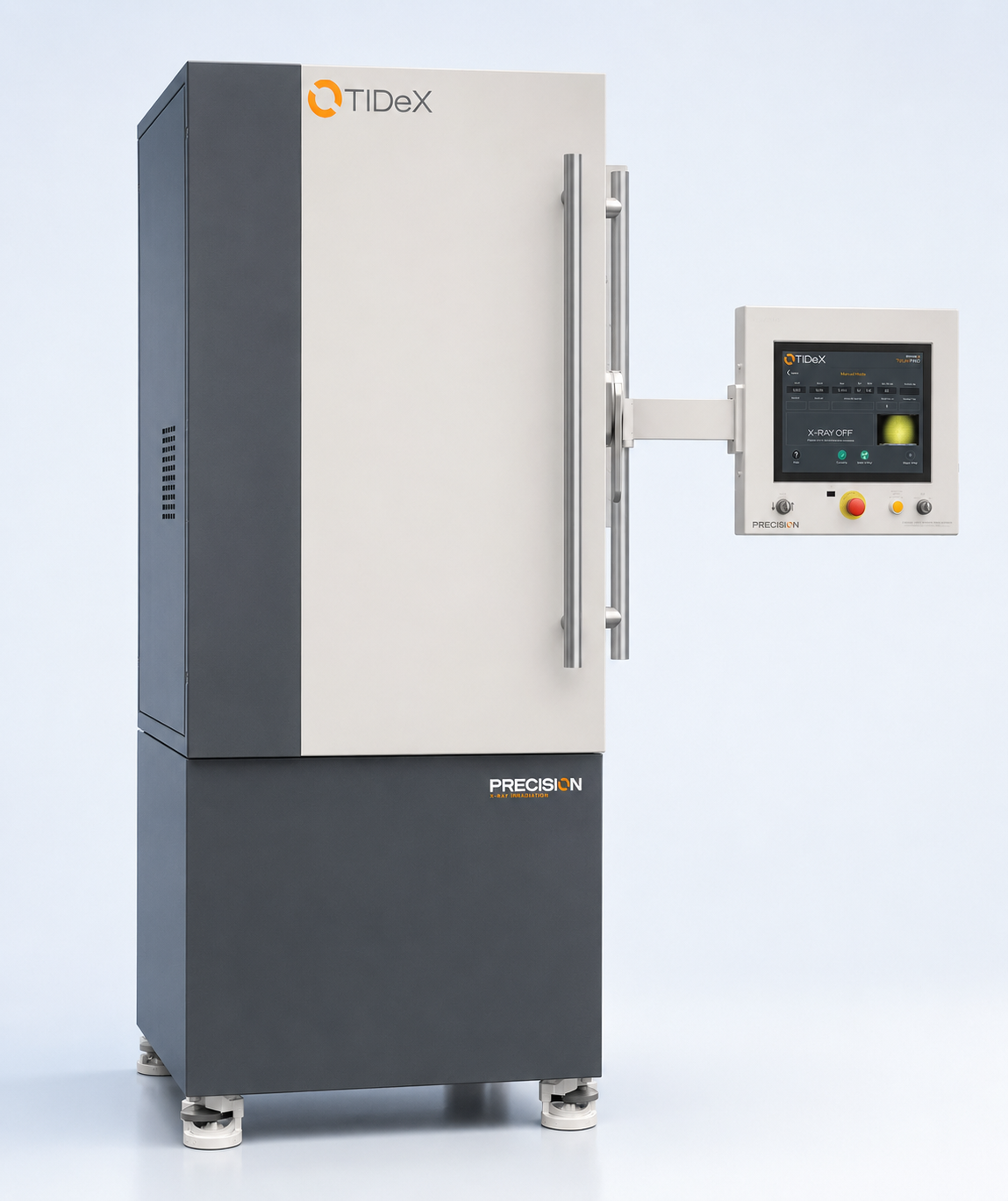

An integrated X-ray irradiation platform for controlled Total Ionizing Dose testing of semiconductor wafers, ICs and electronic components.

  • Controlled dose exposure
  • Integrated dosimetry
  • Unified workflow & software
View system
05Photonics Test Stations

Optical & electro-optical

Photonics Test Stations

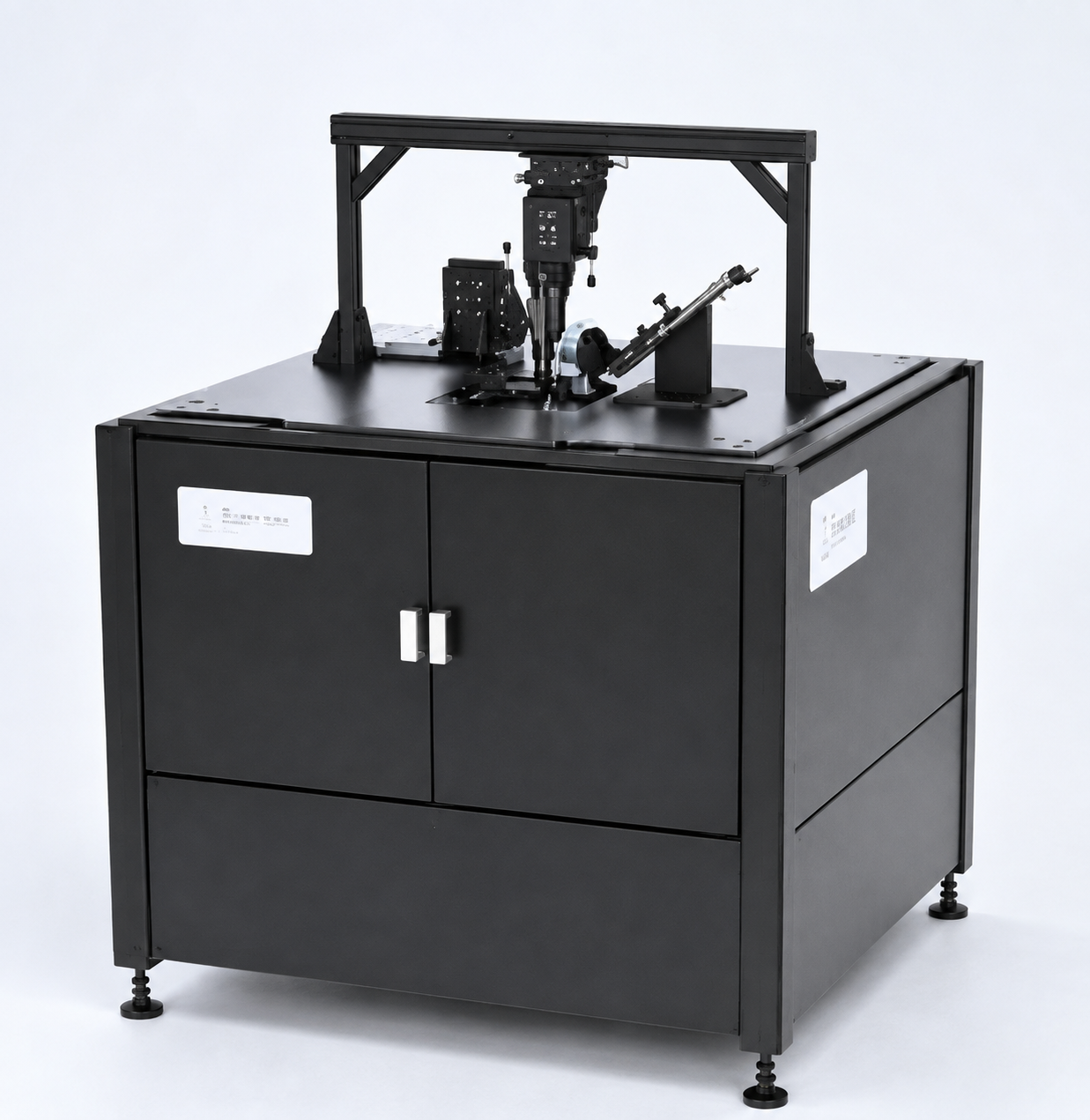

Automated, high-precision optical alignment platforms for photonic integrated circuits from individual die through 300 mm wafers.

  • 6-axis optical alignment
  • Surface & edge coupling
  • Single die to 300 mm
View system
06Device Analyzers & SMUs

Source & measurement

Device Analyzers & SMUs

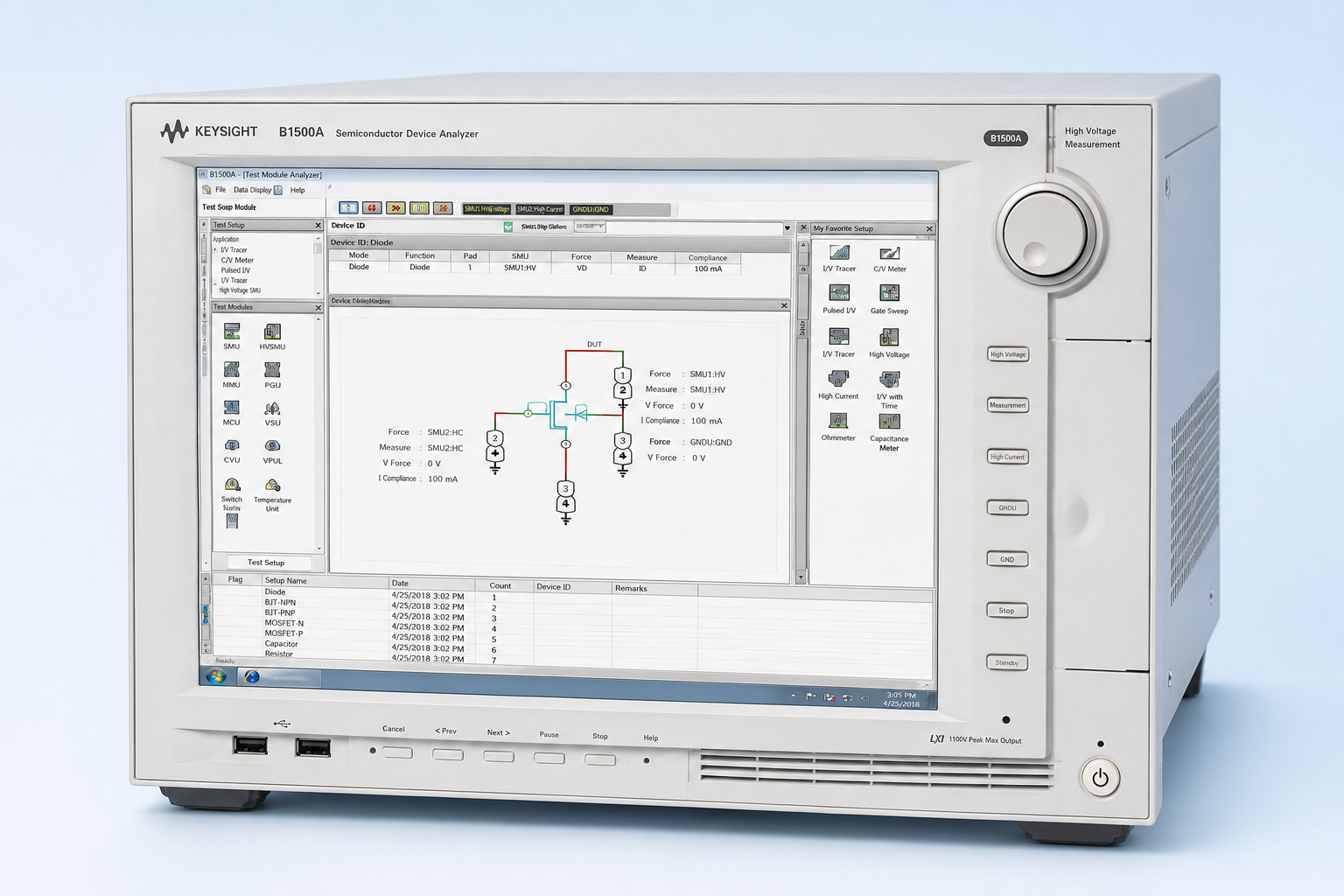

Semiconductor characterization instruments paired with the station, cabling and switching architecture your measurement requires.

  • IV, CV & pulsed IV
  • Modular SMU channels
  • Probe-station integration
View system
07ACE Probe Station

General-purpose probing

ACE Probe Station

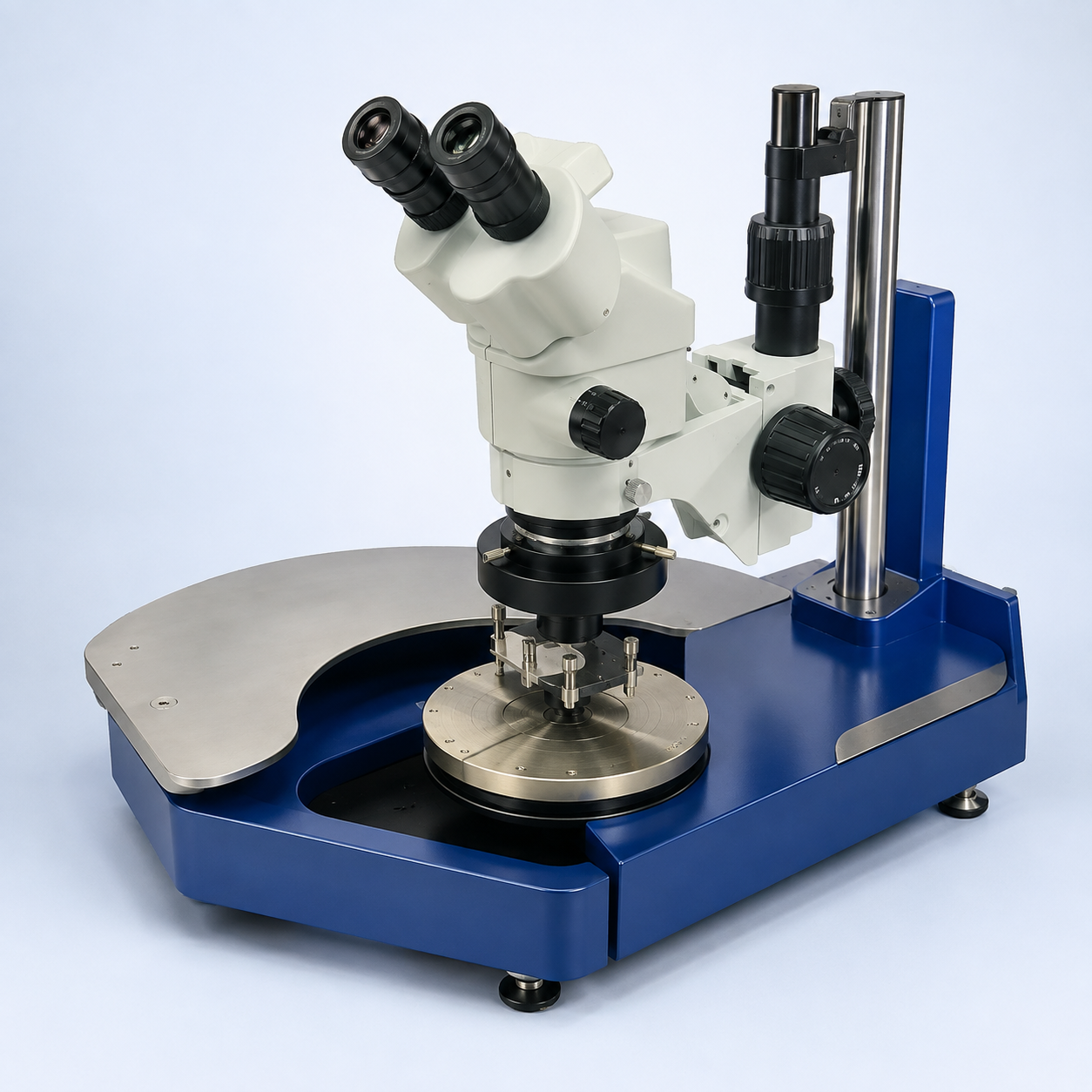

A compact, value-focused manual probing platform for daily device work, education, R&D and straightforward characterization.

  • 150 mm chuck
  • Stereo or compound optics
  • Flexible positioner packages
View system
08EWS100 Wafer Inspection

Automated inspection

EWS100 Wafer Inspection

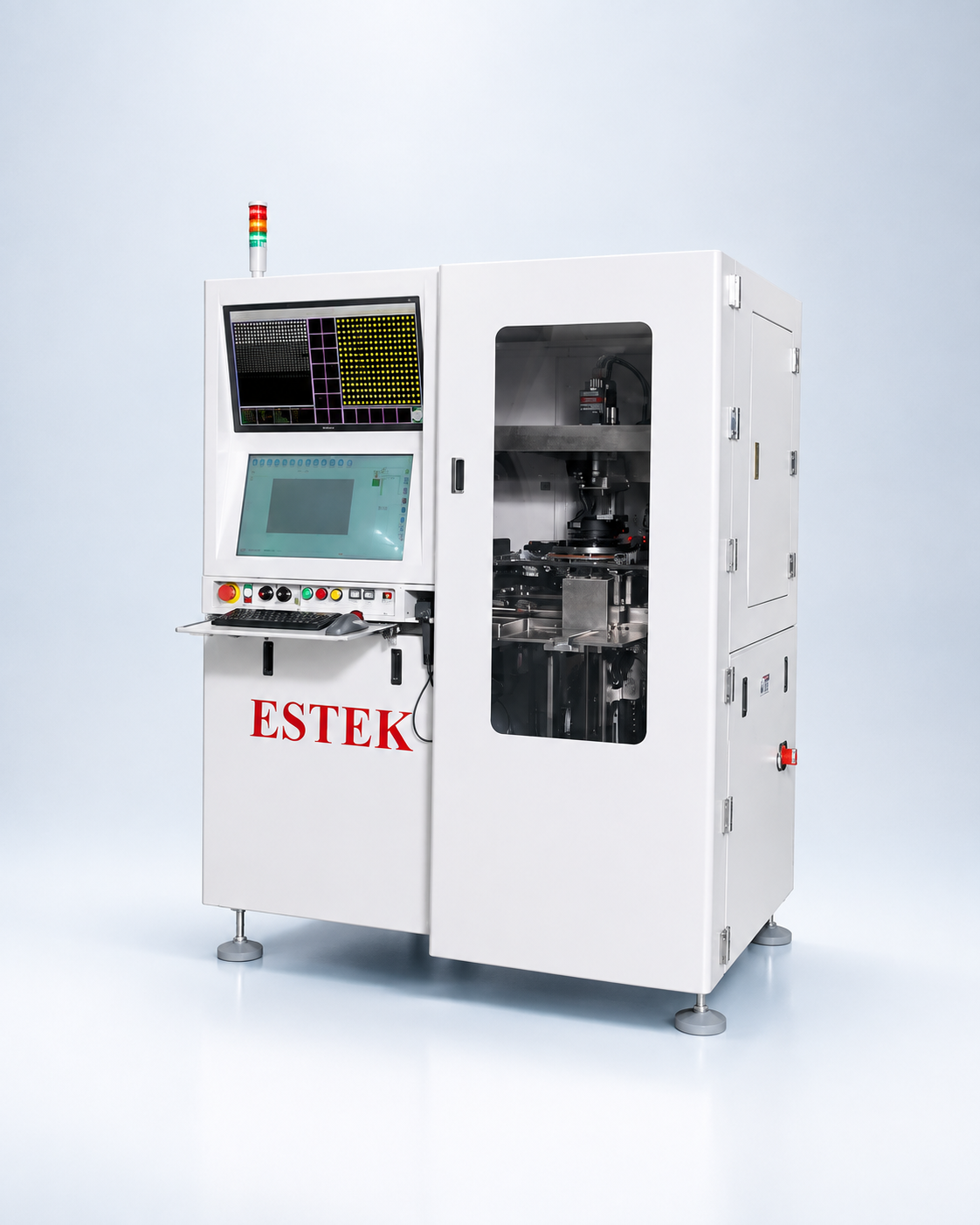

A high-throughput optical inspection platform with automated motion, precision alignment and production-ready wafer mapping.

  • 4–12 inch wafers
  • Up to 100 MP imaging
  • 2 µm optical resolution
View system

Application range

From first contact to confident data.

Every cable, probe, chuck, enclosure and instrument affects the result. We configure the whole path as one test environment.

Start a configuration
01

DC / IV / CV

Low-current, guarded and triax measurement paths for repeatable device characterization.

02

RF / mmW

Station, probe, cable and calibration integration for high-frequency work through 110 GHz.

03

High power

Interlocked configurations for high-voltage and high-current semiconductor evaluation.

04

Thermal

Ambient through extended-temperature chuck systems for characterization from −65 to 400 °C.

05

Photonics

Electrical and optical alignment brought together for die-to-300 mm photonics workflows.

06

Radiation TID

Controlled X-ray irradiation and in-situ electrical measurement for component qualification.

µ
01 Device & fixture
02 Probe & environment
03 Instrument & software

System integration

One measurement path. No disconnected boxes.

Micron Probing pairs the mechanical platform with positioners, optics, thermal control, shielding, analyzers, cabling and software. The result is a system designed to work together from installation.

01Define the testDevice, measurement limits, environment and throughput.
02Engineer the configurationResolve access, compatibility, safety and signal integrity.
03Install and supportCoordinate delivery, setup, training and long-term service.

Start your system

Tell us what you need to measure.

Share the device format, electrical range, temperature, frequency and throughput. We’ll help build the right configuration.
